iC-Haus Japan provides technical support for iC-Haus (Germany) products and their applications, as well as support for the BiSS interface and certification service for BiSS products. iC-Haus was founded in 1984 and is a leading manufacturer of high-quality standard iCs (ASSP) and customized ASiC semiconductor solutions. The product line covers a wide range of applications in industrial automation, automotive industry and medical equipments, with a strong focus on motion control and laser driver iCs. iC-Haus also introduced in 2002 the open-source BiSS interface, a digital interface for sensors and actuators, currently implemented in a wide range of products from a variety of manufacturers. The application groups covered by iC-Haus are listed below: |
Encoder solutions
Sensor solutions
Interface iCs
Laser diode drivers

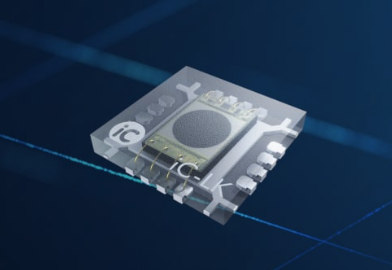

Safety Light Curtain iCs
Relay and FET Driver iCs
| Reference | Outline | Package | URL |
| BL1U | BiSS Line-to-PC USB Adapter |  |
|
| ECW | Encoder Production Utility | |
|
| ETS Servo | Encoder Test Station with Position Feedback | |
|
| iC-BL | BiSS Line Interface Master/ Slave with RS485 Transceiver | QFN28-5x5 | |
| iC-BM | Quad Four-Quadrant Analog Multiplier (MLT04 compatible) | SO18W | |
| iC-DC | 2-Channel Buck/Boost DC/DC Converter | QFN24 | |
| iC-DL | 3-Channel Differential Line Driver with Integrated Impedance Adaptation | QFN28-5x5 | |
| iC-DN | 200 mA Low-Side Switch for 4 V to 36 V | SOT23-6:UDFN6 | |
| iC-DP | 200 mA High-Side Switch and Level Shift for 4 V to 36 V with Input / Output Decoupling | SOT23-6:UDFN6 | |
| iC-DX | Digital Sensor Output Driver (150 mA) | DFN6-2x2 | |
| iC-DX3 | Digital Sensor Output Driver (150 mA) | DFN6-2x2 | |
| iC-DXC | Digital Sensor Output Driver (200 mA) with IO-Link Feedback Channel | DFN8-3x3 | |
| iC-DXC3 | Digital Sensor Output Driver (200 mA) with IO-Link Feedback Channel | DFN8-3x3 | |
| iC-GD | Universal IO-Interface | QFN38-5x7 | |

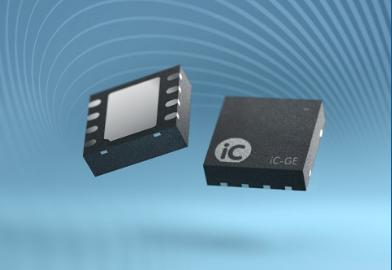

| iC-GE | PWM Relay / Solenoid Driver for a Wide Operating Voltage Range (1 A) | QFN16-4x4 | |
| iC-GE100 | PWM Relay / Solenoid Driver (100 mA) | DFN8-3x3 | |
| iC-GF | IO-Link Slave Transceiver | QFN24-4x4 | |

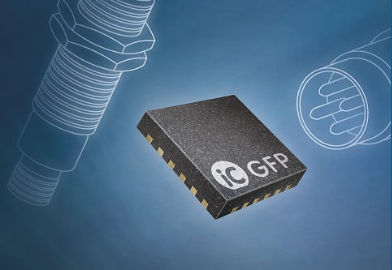

| iC-GFP | IO-Link Slave Transceiver | QFN24-4x4 | |
| iC-GI22 | Dual Channel Inductive Signal Demodulator | QFN32-5x5 | |
| iC-HD2 | Quad Differential Line Driver | TSSOP20 | |
| iC-HD7 | Quad Differential Line Driver | SO16N | |
| iC-HE | Triple Differential Line Driver | SO14N | |
| iC-HF | 6-Channel Encoder Link | QFN32-5x5 | |
| iC-HG | 200 MHz Laser Switch for up to 9 A (pulsed) | QFN28-5x5 | |
| iC-HG30 | 250 MHz Laser Switch for up to 30 A (pulsed) | QFN28-5x5 | |
| iC-HGP | 200 MHz High-Side Laser Switch for up to 9 A (pulsed) | QFN32-5x5 | |
| iC-HK Series | 155 MHz Dual Channel Spike-Free Laser Switch | MSOP-TP:S08-TP | |
| iC-HN Series | Short Pulse 1.4/2.8 A Laser Driver | DFN8-3x3 | |
| iC-HS Series | Ultra Short Pulse Laser Drivers | QFN16-3X3:QFN24-4X4 | |
| iC-HT | Dual CW N / M-Type Laser Diode Driver with SPI / I2C Controller for up to 1.5 A | QFN28-5x5 | |

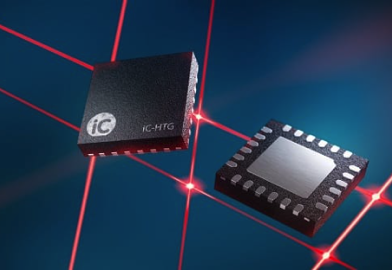

| iC-HTG | Power CW Laser Diode Driver | QFN24-4X4 | |
| iC-HTP | Dual CW P-Type Laser Diode Driver with SPI / I2C Controller for up to 1.5 A | QFN28-5x5 | |
| iC-HX | 3-Channel Differential Line Driver with Reduced Power Dissipation | QFN28-5x5 | |
| iC-JX | 4x4 Bidirectional 24 V High-Side Driver with Load Diagnosis and ﾂｵC Interface | MQFP52 | |

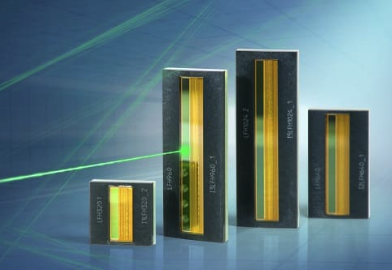

| iC-LF Series | CMOS Linear Image Sensors | oLGA LF2C:oBGA LF3C | |
| iC-LFH Series | High-Resolution Linear Image Sensors | oBGA LFHxC | |
| iC-LGC | 21-Bit Optical Position Encoder with Serial / Parallel and Sin / Cos Output | BLCC LG5C:oBGA LG21C:COB | |
| iC-LK | Light-Grid Pulse Receiver with Integrated Photodiode | cQFN16-4x4 | |
| iC-LNB | 18-Bit Optical Position Encoder with SPI | oBGA LNB2C:oQFN38-7x5 | |
| iC-LNG | 16-Bit Optical Position Encoder with SPI and Serial / Parallel Output | oBGA LNB2C:oQFN38-7x5 | |
| iC-LO | Smart Triangulation Sensor iC | oBGA LO1C | |
| iC-LQNP | Pulse and AC Light Sensor with Complementary Outputs | TO18-4L/F:oBGA LQ1C:cDFN6 | |
| iC-LSB | 8-Channel Active Photosensor Array | oBGA LS2C | |
| iC-LSC | 12-Channel Active Photosensor Array | oBGA LS2C:oQFN32-5x5 | |
| iC-LSHB | Incremental Photosensor Array | oBGA LSH2C:oQFN32-5x5 | |
| iC-LSHC | 3-Channel Sin / Cos Photosensor Array | oBGA LSH2C:oQFN32-5x5 | |
| iC-LTA | 6-Channel Incremental Opto Encoder | oBGA LSH2C:oQFN32-5x5 | |
| iC-LV | 5-Bit Optical Encoder with Cascadable Serial Interface (SSI) | BLCC LV4C:COB | |
| iC-MA | 8-Bit Angular Hall Encoder | DFN10-4x4 | |
| iC-MA3 | Angular Hall Sensor with Sin/Cos Output | QFN16-4x4 | |
| iC-MB4 | BiSS Interface Master | QFN28-5x5 | |
| iC-MCB | SPI-to-BiSS Bridge with RS422 Transceiver | QFN16-3x3 | |
| iC-MCW | BiSS Watchdog for RS422 with SPI | QFN24-4x4 | |
| iC-MD | 48-Bit Quadrature Counter with RS422 Receiver and SPI and BiSS Interface | TSSOP20 | |
| iC-ME | 2-Channel Light-Grid Pulse Receiver | DFN10-4x4 | |
| iC-MFL | 8-Fold Fail-Safe Logic N-FET Driver | |
|
| iC-MG | 8-Bit Sin/Cos Interpolation iC with RS422 Driver | TSSOP20 | |
| iC-MH | 12-Bit Angular Hall Encoder | QFN28-5x5 | |
| iC-MH16 | 12-Bit Angular Hall Encoder | QFN28-5x5 | |
| iC-MH8 | 12-Bit Angular Hall Encoder | QFN28-5x5 | |
| iC-MHA | Angular Hall Encoder with Sin / Cos Outputs | QFN28-5x5 | |
| iC-MHL100 | 12-Bit Linear/Rotary Position Hall Encoder - pole width 1.00 mm | TSSOP20:QFN32-5x5 | |
| iC-MHL200 | 12-Bit Linear/Rotary Position Hall Encoder - pole width 2.00 mm | TSSOP20:QFN32-5x5 | |
| iC-MHM | 14-Bit Absolute Angle Hall Encoder | QFN28-5x5 | |
| iC-MJ | Low-Power Hall Sensor | DFN8-3x3 | |
| iC-ML | 8-Bit Linear Position Hall Encoder | TSSOP20 | |
| iC-MN | 25-Bit Nonius Encoder With 3-Ch. Simultaneous Sampling 13-Bit Sin/Digital Interpolation | QFN47-7x7 | |
| iC-MNF | 26-Bit Nonius Encoder with 3-CH. Sampling 14-Bit Sin/D Interpolation | QFN47-7x7 | |
| iC-MQ | Programmable 9-Bit Sin/Cos Interpolation IC with RS422 Driver | TSSOP20 | |
| iC-MR3 | 13-Bit S&H Sin/Cos Interpolator with 2.5V/5V Controller Interfaces | QFN48-7x7 | |
| iC-MSA | Sin/Cos Sensor Signal Conditioner with AGC and 1 Vpp Line Driver | TSSOP20-TP | |
| iC-MSB | Sin/Cos Sensor Signal Conditioner with Fail-Safe 1 Vpp Line Driver (Safety) | TSSOP20 | |
| iC-MSB2 | Sin/Cos Sensor Signal Conditioner/Multiplexer with 1 Vpp Line Driver | TSSOP20 | |
| iC-MSC | Sin/Cos Sensor Signal Conditioner with Fail-Safe 1 Vpp Line Driver | TSSOP20:QFN32-5x5 | |
| iC-MU | Magnetic Off-Axis Absolute Position Encoder - Pole Width 1.28 mm | DFN16-5x5:QFN48-7x7 | |
| iC-MU150 | Magnetic Off-Axis Absolute Position Encoder - Pole Width 1.50 mm | DFN16-5x5:QFN48-7x7 | |
| iC-MU200 | Magnetic Off-Axis Absolute Position Encoder - Pole Width 2.00 mm | DFN16-5x5:QFN48-7x7 | |
| iC-MV | 8-Bit Hall Encoder With Cascadable Serial Interface | QFN16-3X3 | |
| iC-MZ | Differential Hall Switch and Gear-Tooth Sensor with Line Driver | DFN10-4x4 | |
| iC-MZI | 2-Wire Differential Hall Switch | DFN10-4x4 | |
| iC-NE | Light-Curtain Pulse Receiver | S08:MSOP8 | |
| iC-NG | 8-Bit Sine-to-Digital Converter Processor with Waveform Adaptation | |
|
| iC-NK | Light-Grid Pulse Receiver for Light Curtains | SO8 | |
| iC-NL | Light-Grid Pulse Driver for Light Curtains | SO8 | |
| iC-NQC | 13-Bit Signal Conditioning Interpolator with BiSS C Interface | TSSOP20 | |
| iC-NQE | 16-Bit Signal Conditioning Interpolator with BiSS Interface | TSSOP20 | |
| iC-NQI | 13-Bit Signal Conditioning Interpolator with 2-Wire Interface | TSSOP20 | |
| iC-NT | Light-Curtain Pulse Driver | SO8:MSOP8 | |
| iC-NV | 6-Bit Sin / Cos Flash Converter with Pin-Selectable Interpolation to x16 | TSSOP20 | |
| iC-NVH | 6-Bit Sin / Cos Flash Converter with Pin-Selectable Interpolation to x16 (half-cycle index) | TSSOP20 | |
| iC-NZN | N-Type Laser Diode Driver with APC and ACC | QFN24-4x4 | |
| iC-NZP | P-Type Laser Diode Driver with APC and ACC | QFN24-4x4 | |
| iC-OD Series | Optical Position-Sensitive Detector (2.6 mm PSD) with Ambient Light Suppression | DFN10:OLGA OD4C | |
| iC-OF | 3-Bit Optical Encoder | BLCC OL3C OF2RZ | |
| iC-OG | 8-Bit Differential Scanning Optical Encoder with LED Control | BLCC OG2D | |
| iC-PD3948 | 5-Channel Phased Array Sine Encoder (39-2048) | oBGA LSH2C:0QFN32-5x5 | |
| iC-PG | Miniature Reflective Optical Absolute Encoder | oDFN8-3x3 | |
| iC-PI | Programmable 12-Bit Sin/Cos Interpolation IC With RS422 Driver | TSSOP20 | |
| iC-PMX | Wiegand Multiturn Encoder | QFN32-5x5:QFN48-7x7 | |
| iC-PN Series | Phased Array Nonius Encoder | oBGA LSH2C:0QFN32-5x5 | |
| iC-PNE Series | Octal Nonius Phased Array Encoders | oQFN32-5x5 | |
| iC-PNH Series | Phased Array Nonius Encoder | oBGA LSH2C:0QFN32-5x5 | |
| iC-PR Series | EncoderBlueﾂｮ 3-Ch. Reflective Optical Encoder IC Series | oQFN24-4x4 | |
| iC-PT H-Series | 6-Channel Phased Array Opto Encoder IC Series | oQFN32-5x5 | |
| iC-PT Series | 6-Channel Phased Array Opto Encoder IC Series | oQFN32-5x5 | |
| iC-PV | Battery-Buffered Hall Multiturn Encoder | QFN16-3x3 | |
| iC-PVL | Linear Off/On-Axis Battery-Buffered Hall Multiturn Encoder | QFN16-4x4 | |
| iC-PVS | Linear/Off-Axis Battery-Buffered Absolute Position Hall Sensor | QFN38-5x7 | |
| iC-PX Series | EncoderBlueﾂｮ 2-Ch. Reflective Optical Encoder IC Series | oDFN8-3x3 | |
| iC-PXL3212 | Optical Reflective 2-Channel Digital/Analog Encoder | oDFN8-3x3 | |

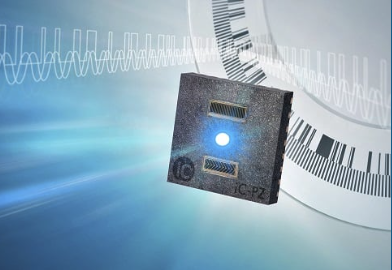

| iC-PZ Series | High-Resolution Reflective Absolute Encoder | oQFN32-5x5 | |
| iC-RC1000 | Sin/Cos Signal Safety Monitor IC | MSOP10-3x3 | |
| iC-RZ Series | 2-Channel Safety Encoder | QFN38-5x7 | |
| iC-SD85 | Infrared 850 nm LED | BLCC SG1C:oLGA SD2C:BLCC SD3C | |
| iC-SG85 | Infrared 850 nm LED | BLCC SG1C:BLCC SD4C | |
| iC-SM2L | AMR Linear Position Sensor (Pitch: 2 mm) | LGA SM2C | |
| iC-SM5L | AMR Linear Position Sensor (Pitch: 5 mm) | LGA SM2C | |
| iC-SN85 | Infrared 850 nm LED | BLCC SN1C:BLCC SN2C | |
| iC-TL46 | Blue 460 nm LED | TO46-2L1:BLCC SD1C | |
| iC-TL6 | Masked Point Source 640 nm LED | BLCC2 1206 | |
| iC-TL85 | Infrared 850 nm LED | TO46-2L1:TP46-2FL | |
| iC-TW11 | 10-Bit Ultra Low Power Magnetic Absolute Rotary Encoder | QFN16-4x4 | |
| iC-TW2 | Programmable 8-Bit Sin / Cos Interpolation IC with EEPROM | QFN24-4x4 | |
| iC-TW28 | 10-Bit Low Latency Sin / Cos Interpolator with Auto-Calib. and Line Driver | QFN32-5x5 | |
| iC-TW29 | 26-Bit Encoder Processor with Interpolation and BiSS Interface | QFN32-5x5 | |
| iC-TW3 | Automatic Signal Conditioner with LUT Temperature Compensation and 1 Vpp (100 ﾎｩ) / 2 Vpp Outputs | QFN32-5x5 | |
| iC-TW39 | 24-Bit Magnetic On-Axis Angle Sensor | QFN32-5x5 | |
| iC-TW8 | 16-Bit Sin/Cos Interpolator with Automatic Calibration | QFN48-7x7 | |
| iC-VX | 3-Channel Differential Line Driver with Complementary 24 V Outputs | S016W | |
| iC-WD | Switched-Mode Dual 5 V Regulator for 8 V to 36 V | S08:S08-TP:DFN10-4x4 | |
| iC-WDA | Switched-Mode Dual 3.3 V Regulator for 8 V to 36 V | DFN10-4x4 | |
| iC-WDB | Switched-Mode 3.3 V (200 mA) and 5 V Regulators for 8 V to 36 V | DFN10:S08 | |
| iC-WDC | Switched-Mode 3.3 V and 5 V (200 mA) Regulators for 8 V to 36 V | DFN10:S08 | |
| iC-WE | 3-Channel 75 Ohm Line Driver for RS422 and 24 V Applications | S016W:SO20 F12/8:TSSOP20 | |
| iC-WG | 14-Bit Differential Scanning Optical Encoder iC | BLCC WGC5 WG1L:BLCC WGC5 WG1RZ | |
| iC-WJ Series | Laser Diode Drivers for CW and Pulse Operation up to 300 kHz | S08:MSOP8 | |
| iC-WJB | Laser Diode Driver for Battery Supplies of 2.7 to 6 V | S08:MSOP8 | |
| iC-WK Series | Universal Laser Saverﾂｮ for CW Operation of 2.4 to 6 V | S08:MSOP8 | |
| iC-WKM | CW Laser Diode Driver | S08-TP:DFN10-4x4 | |
| iC-WKN | CW Laser Diode Driver | S08-TP:DFN10-4x4 | |
| iC-WKP | CW Laser Diode Driver | S08-TP:DFN10-4x4 | |
| iC-WT | 3-Channel Photodiode Amplifier-Comparator with LED Controller | S016N | |
| iC149 | ns-Pulse Generator for Fast Laser Diode Drivers | |
|
| iC212 | High-Speed Photoreceiver with Si-PIN Photodiode | |
|
| iC212NIR | High-Speed Photoreceiver for Near Infrared | |
|
| iC213 | Programmable Oscillator Module (40 kHz to 1.4 GHz) | |
|
| iC227 | Dual Channel 11 GHz Sampling Oscilloscope | |
|
| iC245 | Pulse-Width Modifier (250 ps to 10 ns in steps of 40 ps) | |
|
| iC334 | Connection adapter with clamp terminal | |
|
| iC384 | SPI/I2C to USB Adapter | |
|
| Laser Toolkit | Fast and Easy Laser Pulse Measurement | |
|
| MB3U-I2C | BiSS(SSI) and I2C-to-PC Adapter (USB) | |
|
| MB5U | High Performance Galvanic Isolated BiSS (SSI)-to-PC USB Adapter | |
|
| MB8U | High Performance Galvanically Isolated BiSS | |
|
| SinCosYzer 2 | Encoder Signal Analysis with Graphical Visualization | |
